Description

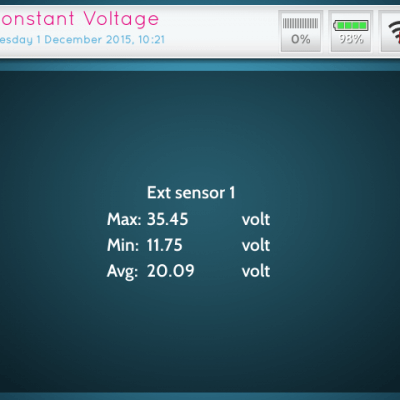

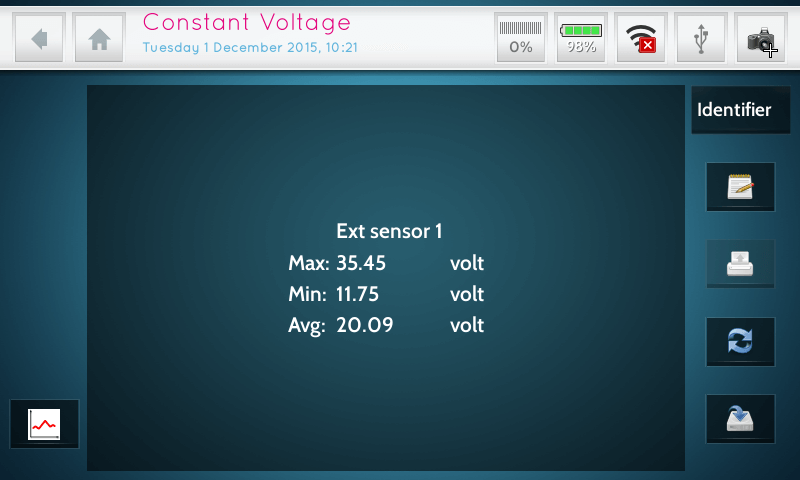

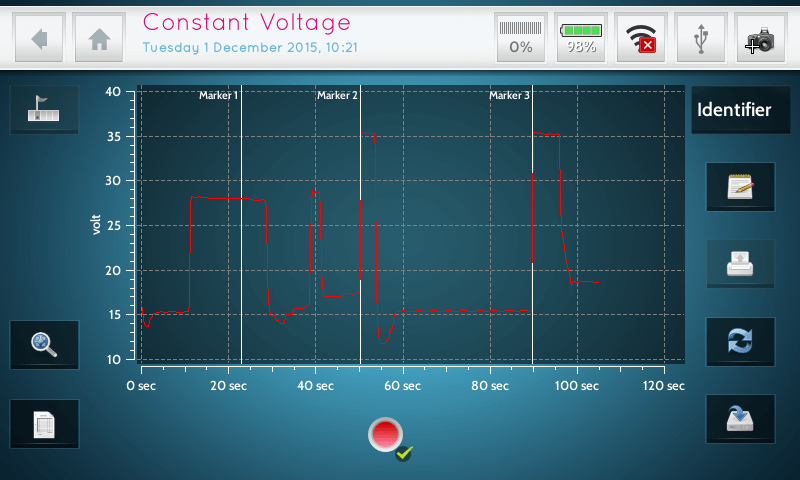

The Voltage Measurement App records voltage fluctuation between 0VDC and 40VDC in an undefined time frame. The sampling rate can be set by the user before starting the recording. The PT-VI records data until the user stops the recording manually. From the recorded data the minimum, maximum and average value will be calculated and the results can be saved with an identifier and notes. Recorded data can be zoomed in parts and from each part that has been zoomed the minimum, maximum and average data will be recalculated and can be “saved as” with a new identifier and notes. Constant Voltage recordings can also be recollected from the memory afterwards and from there resaved as parts of it. During recording of data a marker can be added at a moment when an event occur. Event description of a marker can be written in the notes of each recording or part of it. In order to use this app, our Voltage Probe need to be ordered as well.

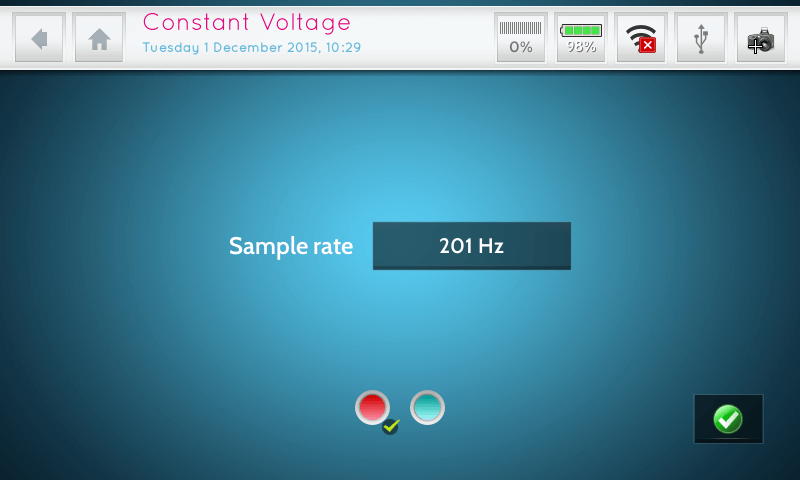

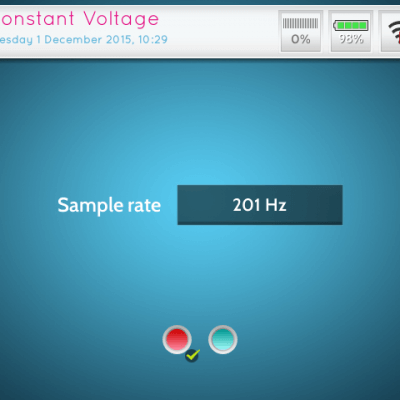

Sampling rate adjustable by user between 201 Hz and 8kHz
